All-Electric Subsea Actuators

Cost-effective and reliable electric actuators for subsea production and processing systems

Contact Us
Related Documents
UN SDGs

Align with United Nations Sustainable Development Goals 7, 12, and 13

Embodied Carbon

Eliminate 1,015†‡ metric tons of CO2e by reducing subsea infrastructure

Waste Reduction

Eliminate 300,000 L of hydraulic control fluid in the first year and 5,000 L/year thereafter‡

† Emissions during manufacturing, transportation, and installation; compared with hydraulic actuators
‡ Across one 4-well subsea production system and one boosting station, installed with 60-km step-outs

Moving Forward with Your All-Electric Subsea Technologies
Whether you’ve transformed various components or your whole production system from hydraulic to electric, how do you get the maximum value from your investment in lower-cost, more sustainable production? Subsea Live data-driven performance service keeps you informed in real time via AI-based equipment health insights, operational insights, and system-wide production insights. You don’t have to go it alone to manage electrification proactively.
Go live to collaboratively optimize production performance

Versatile portfolio for wide range of applications

OneSubsea offers an electric subsea production system, a first-of-its-kind, truly comprehensive production system that comprises electric valves, trees, chokes, and manifolds. Each component of this system uses electrically driven actuators. Industry-standard electrohydraulic actuation can be heavy, logistically complex, environmentally risky, and costly. Our all-electric technologies enable flexible, cost-efficient, and reliable subsea production with reduced intervention requirements—especially useful in challenging environments such as ultradeep water and long step-outs. An optimized portfolio of actuators addresses a wide range of applications, greatly reducing your inventory and costs.

Our electric subsea actuators are a low-weight solution for operation of heavy valves with electric motors. They use standard electric power systems and require no hydraulics in the supply or actuation system, eliminating heavy topside equipment (e.g., hydraulic power unit). They provide greater control and precision while reducing size and weight of actuation systems, subsea infrastructure, testing time and cost, logistics and installation cost, HSE risks, and water contamination.

Compared with conventional electrohydraulic systems, our all-electric subsea systems can reduce costs by up to 20%.

Subsea production manifold equipped with electric actuators and electric subsea control module (eSCM).
Retrievable electric actuators mounted on valve buckets.
>1×106 h
Operation with zero failure
25 years
Valve actuator design life
>14 years
Operation by first all-electric subsea system
Decarbonize Your Operations
All-electric subsea actuators are part of our Transition Technologies portfolio. Learn about our approach to driving high performance sustainably and other technologies that can help you access renewable power, digitalize your infrastructure, and reduce environmental impact.
Read More

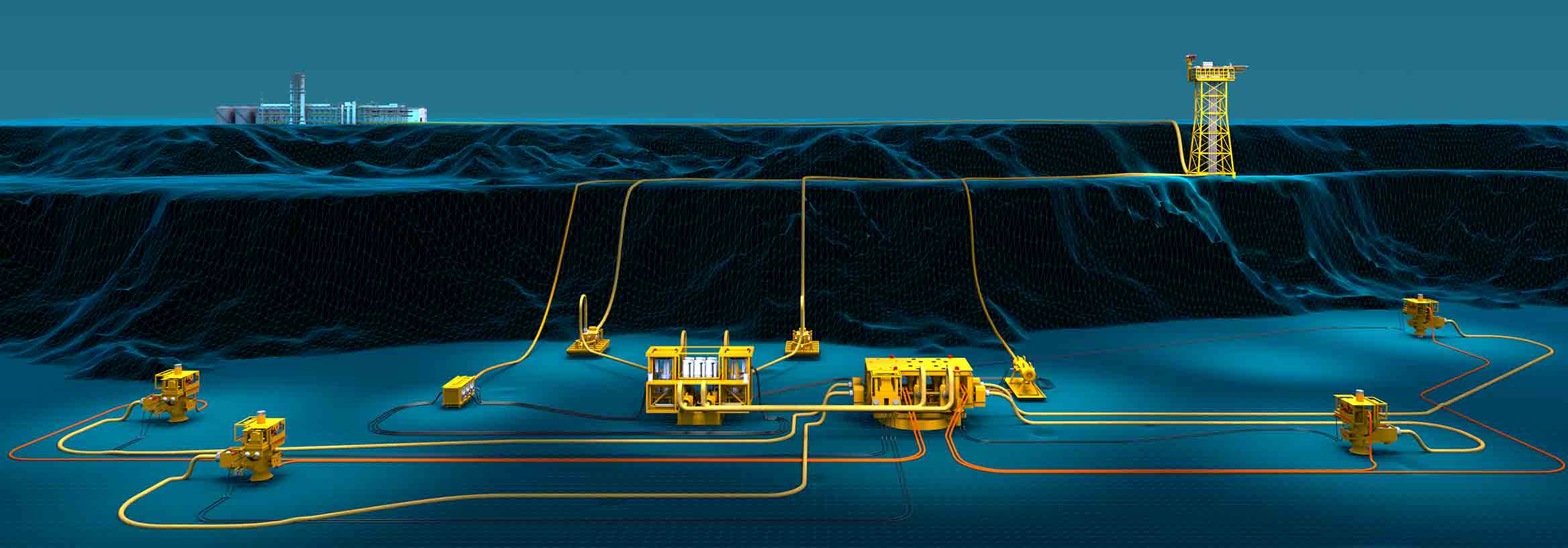

Subsea field before optimization with all-electric technologies. Subsea field after optimization with all-electric technologies.
Move the slider to compare the subsea footprint of hydraulic lines (left) with the simplified architecture of an electrified field (right).

High efficiency over long distances

Using high-voltage DC for long-distance power transmission is significantly more efficient compared with either AC power or hydraulic pressure.

Smaller footprint

Our electric umbilicals have a smaller cross section, enabling the manufacturing and spooling of longer continuous lengths and facilitating the use of a smaller installation vessel. And on long step-outs, splices in the umbilical can be reduced or even eliminated. Overall equipment weight is also reduced, and small-bore welding is reduced by up to 60%.

Zero hydraulics-related risks

Because hydraulic fluid is not required for actuation, the risk of discharging hydraulic fluid into the environment and hydraulic pressure safety issues are completely eliminated.

Brownfield capability

Electric actuators can also be used to electrify existing subsea equipment in brownfields and introduce new functionality, such as remote valve control.

Low-power, Low-torque Electric Rotary Actuator
Low-power, low-torque electric subsea rotary actuator

This field-proven lightweight actuator can generate up to 270 N.m of torque. Suitable for operating small-bore valves, electric chokes, and electric manifold valves, it supports a range of industry-standard subsea communication interfaces.

Low-to-medium-power, High-torque Electric Rotary Actuator

This electric actuator is able to provide up to 2,700 N.m of torque. A range of gearbox configurations is available, making the actuator suitable for multiple applications and valve types. It can be used on electric chokes, electric manifolds, electric boosting stations, pipeline end terminations, and more. It complies with several industry standards for communication and power interfaces.

Low-to-medium-power, high-torque electric subsea rotary actuator
